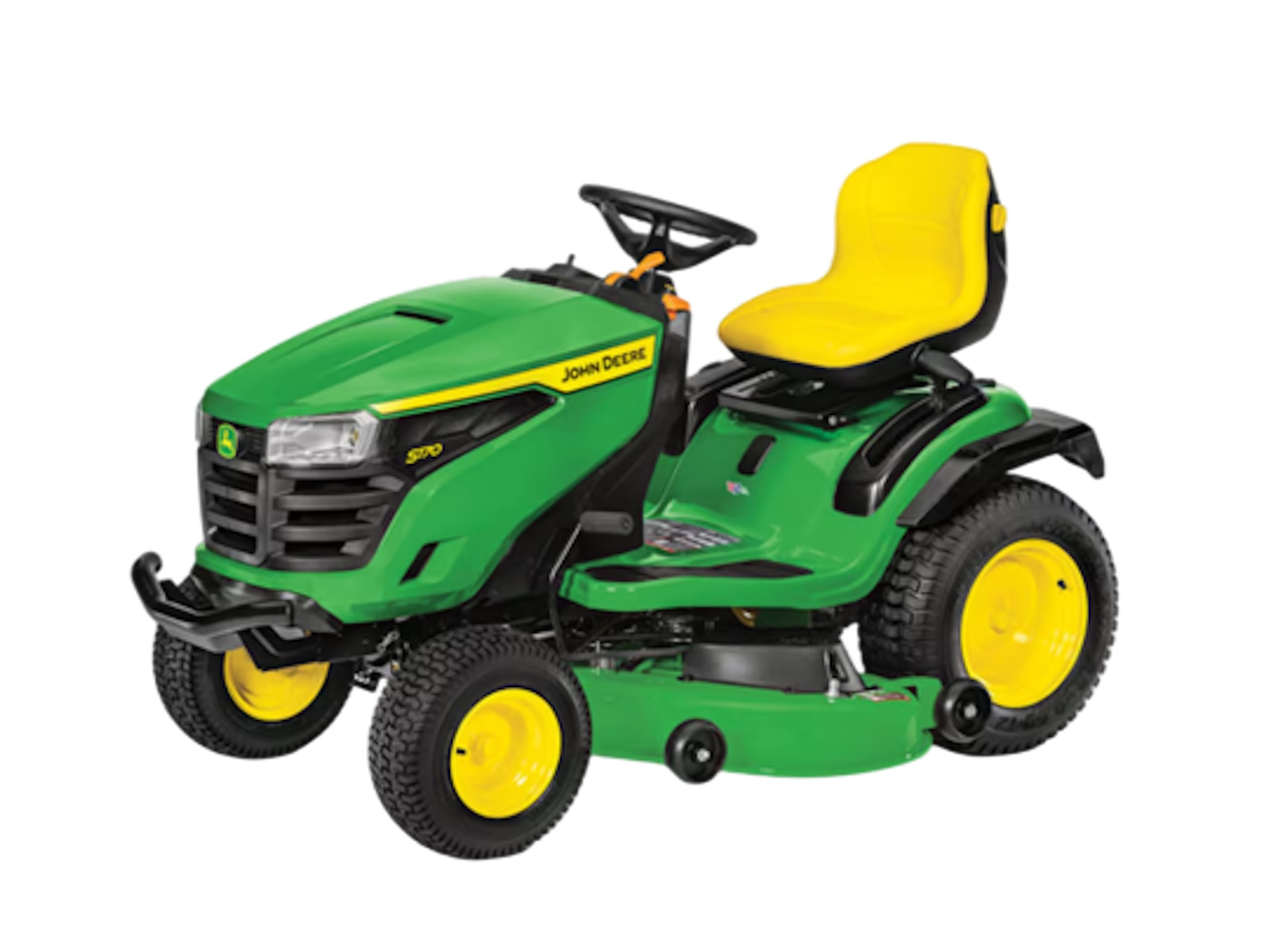

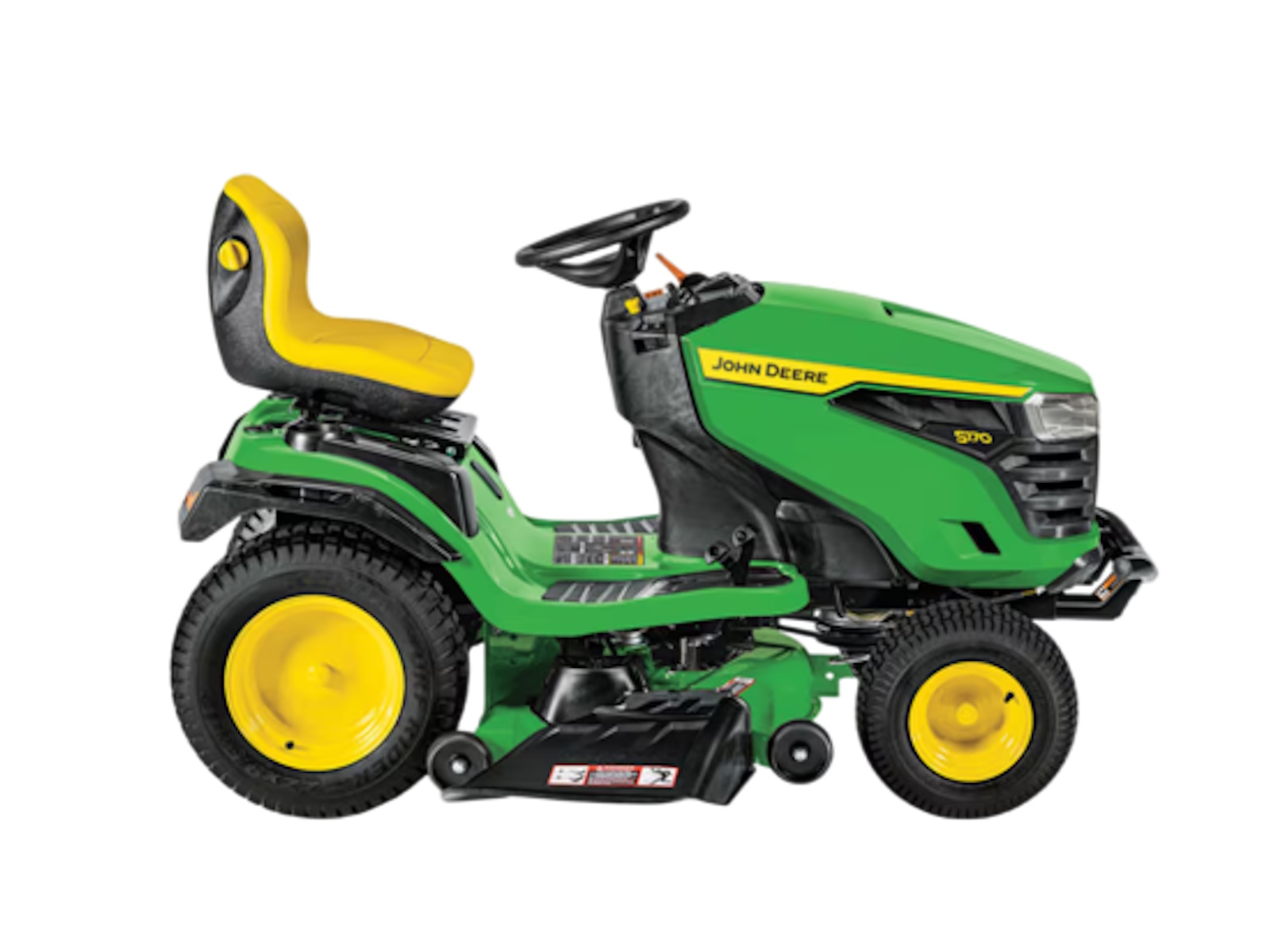

2025 John Deere - Lawn S170

• 24 hp (17.9 kW)* V-Twin Extended Life Series (ELS) Engine
• 48-in. Edge™ Mower Deck
• Easy Change™ 30-Second Oil Change System
• Adjustable lumbar seat and standard front bumper
• 2 year/120 hour bumper-to-bumper warranty

Features May Include:

• Engine is powerful and smooth-running V-twin design

A 24-hp (17.9-kW) V-twin extended-life series (ELS) engine provides plenty of power and torque to handle tough mowing, mulching, and bagging:

• Includes ELS engine features for enhanced performance and longer life
• V-twin cylinder design for greater torque, lower vibration, and improved sound quality
• Electronic ignition for fast starts
• Spring-return feature to ensure the operator will not mistakenly leave the throttle lever in the choke position
• Cast-iron cylinder liners for longer engine life
• Overhead valves for excellent power and fuel economy
• Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
  • More effective when operating the tractor on an incline
• The capacity is 2.4 U.S. gal. (9.1 L).
• The fuel filler opening is conveniently located under the seat.
  • Filling the tank without spilling is easy.
  • A tethered fuel tank cap is more convenient.
  • The sealed fuel cap helps keep vapors inside the tank.

• John Deere Easy Change™ 30-second oil change system

The John Deere Easy Change 30-second oil change system makes changing the engine oil easy, quick, and clean. Changing the oil is as easy as twisting on a new oil-filled filter. Oil does not need to be drained from the engine.

The John Deere Easy Change filter is an additional engine oil reservoir. Changing the filter removes the captured contaminants and replaces about 0.8 qt (0.76 L) of engine oil.

The functionality does not stop with ease of use. The Easy Change oil system has several meaningful benefits over the traditional oil filter system of the 100 Series:

• A synthetic filter material is used for more predictable filtering and longer life.
• Filtering capacity is greater than with a standard oil filter.
  • More filter surface area
  • More oil flow capacity
• The system has 40 percent more oil volume.
• The oil and engine run cooler.
• The oil filter valve closes whenever the engine stops, so filtered particles are captured and cannot drain back into the engine.
• The risk of spilling during oil service is greatly reduced.
• Waste oil (and new oil production) is reduced by over 1,000,000 lb (453,592.4 kg) per tractor production year.
• This system is not a compromise to just make oil changes easier—these engines pass the same John Deere expectations and rigorous testing as always.

Partly due to these improvements, it is not necessary to remove and dispose of all the oil in the engine during service.

Everyone who uses the John Deere Easy Change system saves time and avoids the mess of a traditional oil change. In the past, many 100 Series Lawn Tractor owners rarely or never got around to changing their engine oil. With  the 30-second oil change, even people who previously would not consider changing the oil themselves can easily do it. The Easy Change system is a no-mess, no-fuss solution the competition cannot match.

Installation instructions are in the Operator’s Manual and in the John Deere Easy Change service part box.

Please recycle. Many local government recycling programs, authorized retailers, auto-service centers, and auto-parts stores will puncture and recycle used oil filters and oil.

• Full-featured engine is more reliable and lasts longer

This full-featured engine is engineered to deliver world-class endurance and power. A step above the competition, it is designed to be more dependable and longer lasting, saving time and money over the long run.

Built to exceed demanding needs by incorporating premium features and innovative designs:

• Overhead valve (OHV) design for cooler operation and longer valve life
• Contains an advanced debris management system that directs cooling air through the rotating screen to the air cleaner compartment, where large debris is pre-filtered through ejector slots
  • Keeps unfiltered air out of the engine through a large, dual-sealed, premium oval-shaped cartridge-style filter
  • Ensures maximum protection for extended engine life with the premium air cleaner, a pleated paper filter with a foam precleaner
  • Captures fine particles for maximum protection and extended maintenance
• Provides maximum protection with full-pressure lubrication system
  • Pumps oil by a mechanical gerotor-style pump to all critical engine components
• A premium bearing package for improved durability; includes a super-finished crank pin bearing with a 50 percent smoother surface to increase load capacity by 35 percent
  • Uses a premium DU Teflon®-coated bearing
  • Helps resist wear and increases durability through self-lubricating bronze bearing
• Wear-resistant, chrome-plated valve stems for long-life valves
  • 44 percent smoother for longer life
• Cast-iron cylinder liners for longer life
• Dependable float-feed type carburetor with integral fuel pump
• High-capacity fuel filter for dependable operation
• John Deere Easy Change™ 30-second oil change system makes changing the engine oil easy, quick, and clean
• Maintenance-free electronic ignition for quick, dependable starts
• Platinum spark plugs for extended life

Teflon is a trademark of The Chemours Company FC, LLC.

• Frame made of full-length welded steel for reliability

The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.66-mm) steel:

• Full-length, robotically welded frame design has high-strength steel rails for added strength and long life.
• One-piece, steel fender deck is bolted to the frame.

The front axle is constructed of solid cast iron that will not bend:

• Automotive-like steering system with sector and pinion steering gears and single drag link with a tie rod provides a very strong, low-effort, and tight-turning system.
• Three grease fittings, on both steering spindles and center pivot, allow for regular lubrication to help maintain easy steering and minimize wear.
• Large, 0.75-in. (1.9-cm) diameter wheel spindles provide excellent durability.

The front bumper is included on the S130, S140, S160, S170, and S180. It is available as an optional attachment for the S100, S110, and S120.

• Additional front-end protection
• Attractive, bold style

The CargO Mount system is a combination of front- and rear-mounting points providing convenient and easy installation of the sun canopy, rear bagger, and other attachments.
